Model #: 16117-001
Shipping to United States only
Couldn't load pickup availability

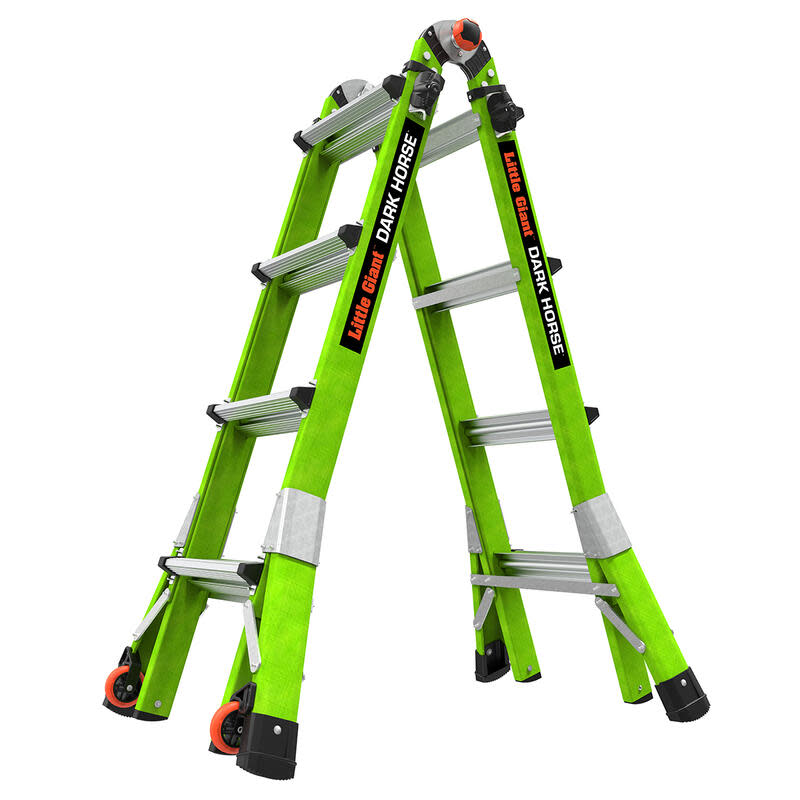

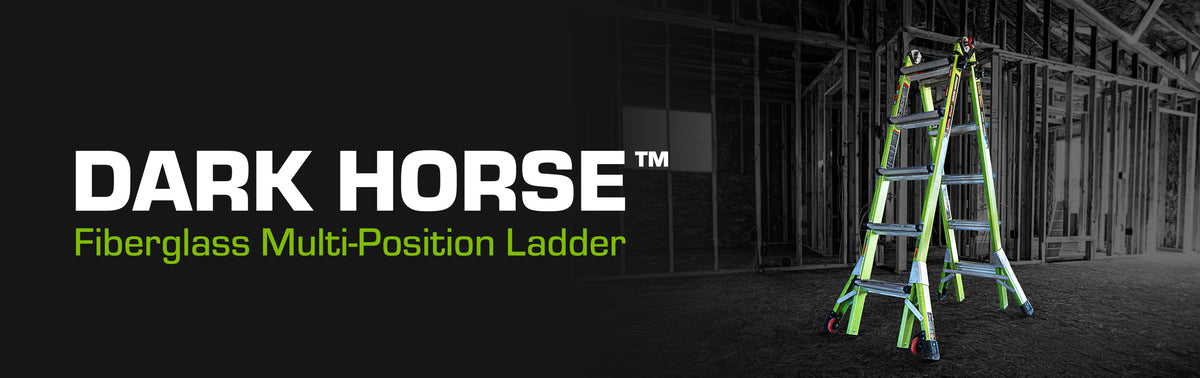

The Little Giant® Dark Horse™ combines some of our best ladder features into one versatile, multi-position ladder that will suit your ladder needs for years to come.

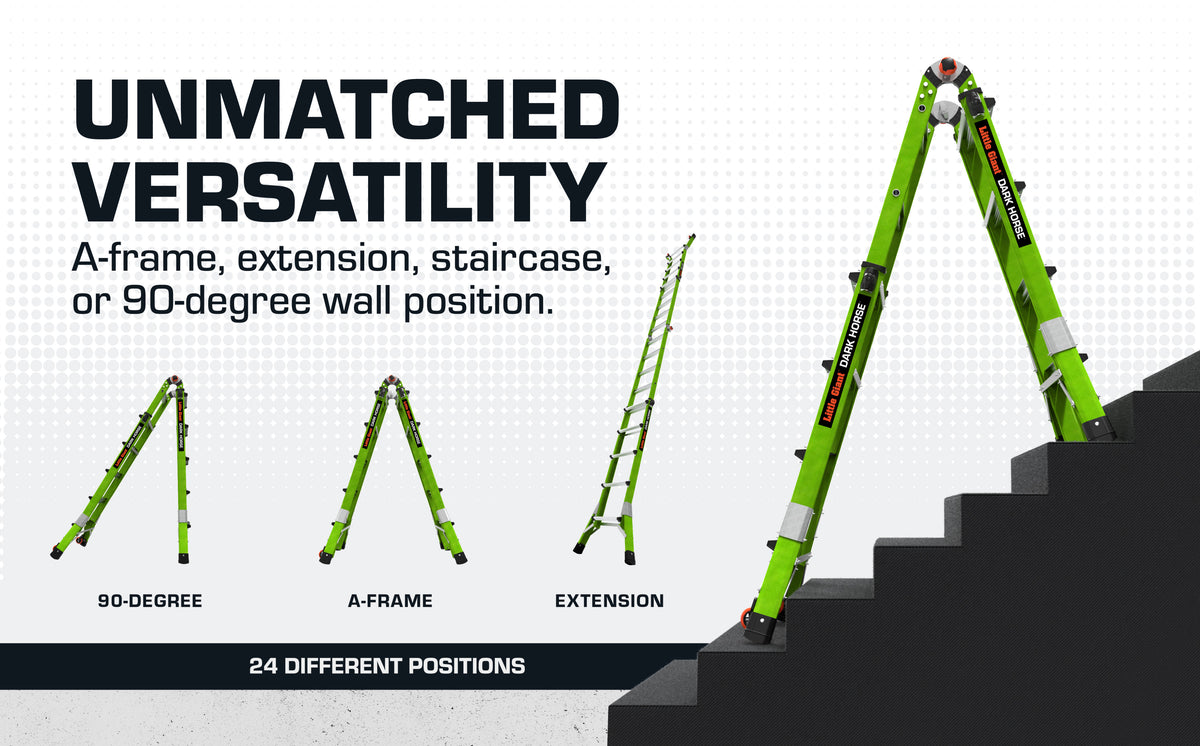

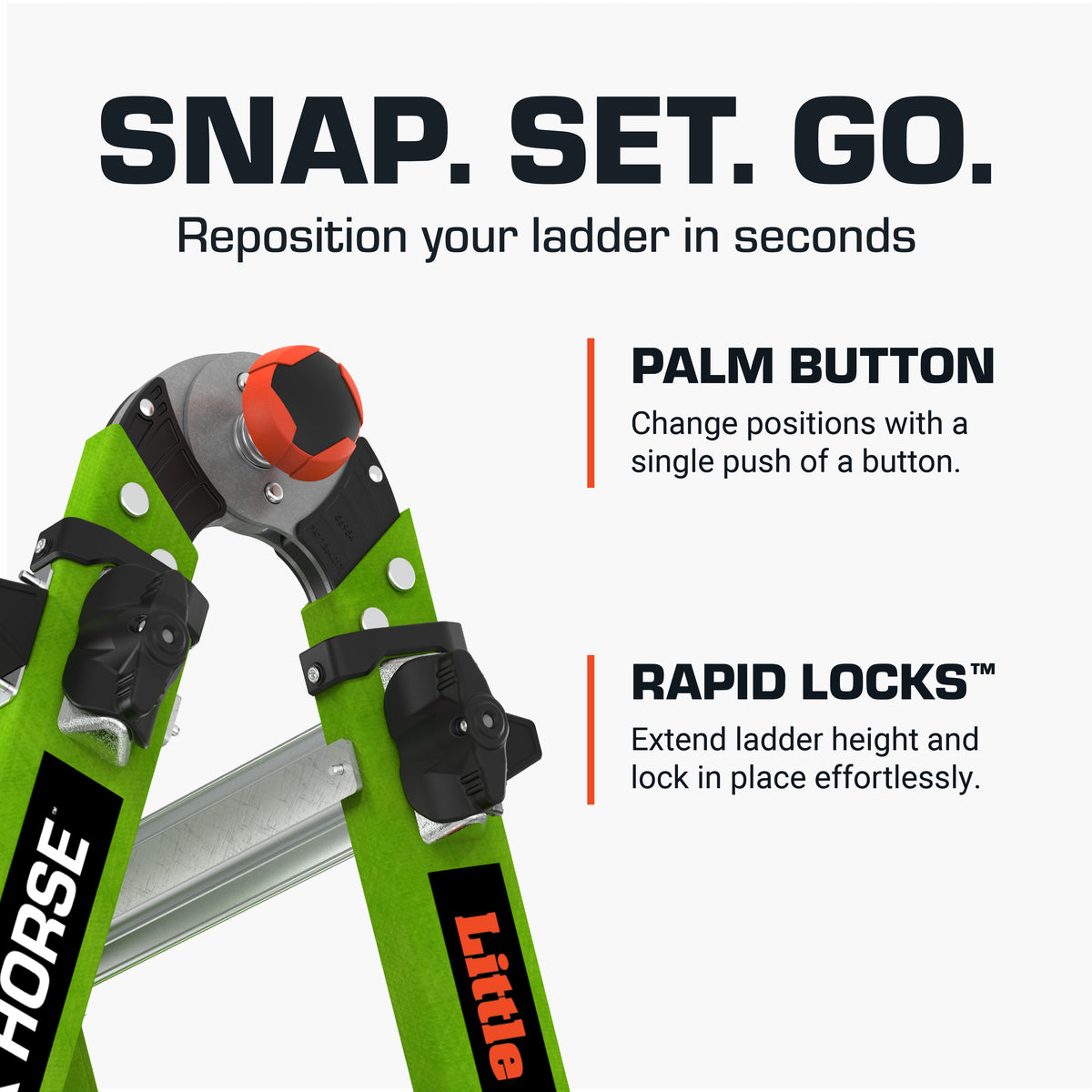

1. PALM BUTTONS

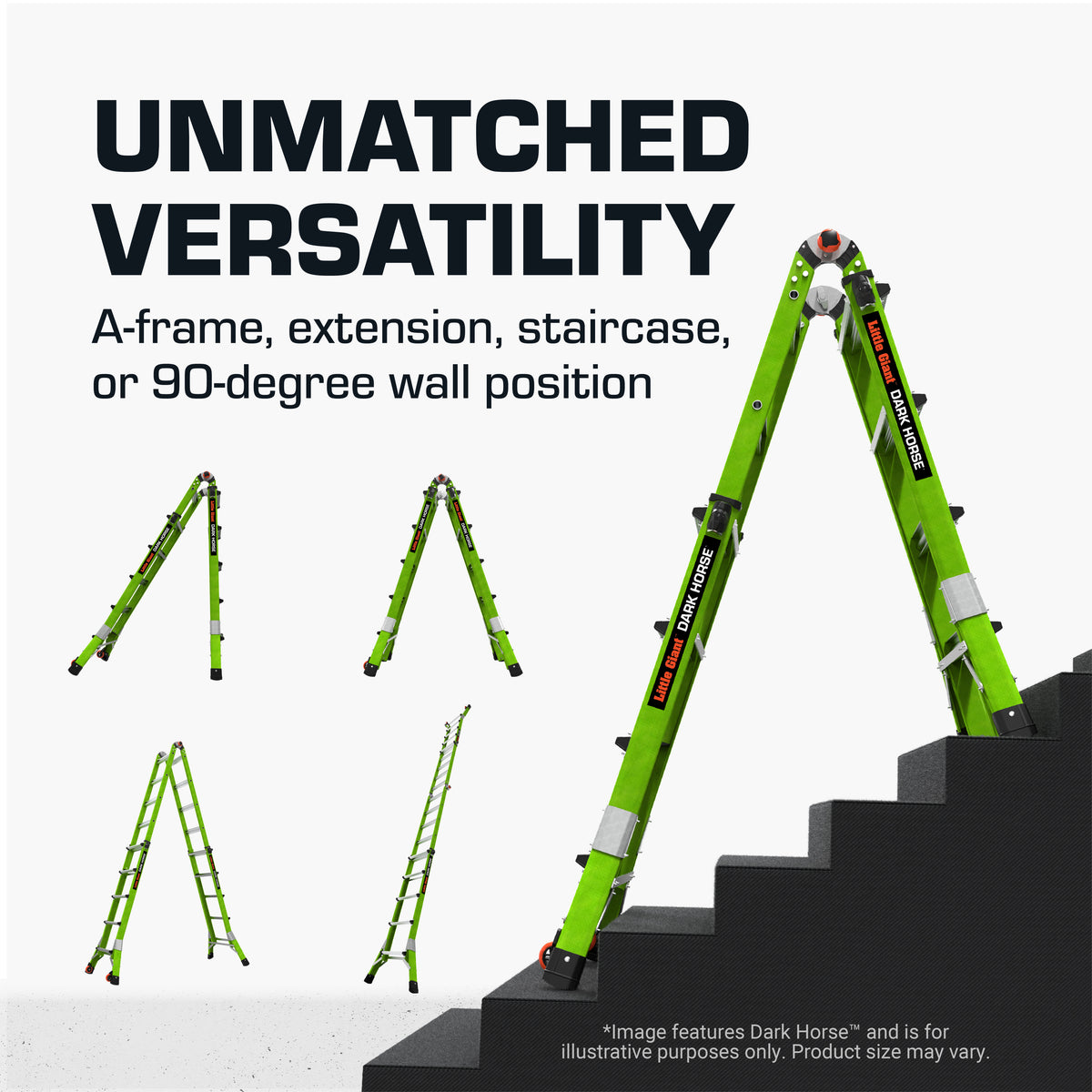

Move from storage to A-frame to extension ladder configurations by pushing in the ladder's palm button.

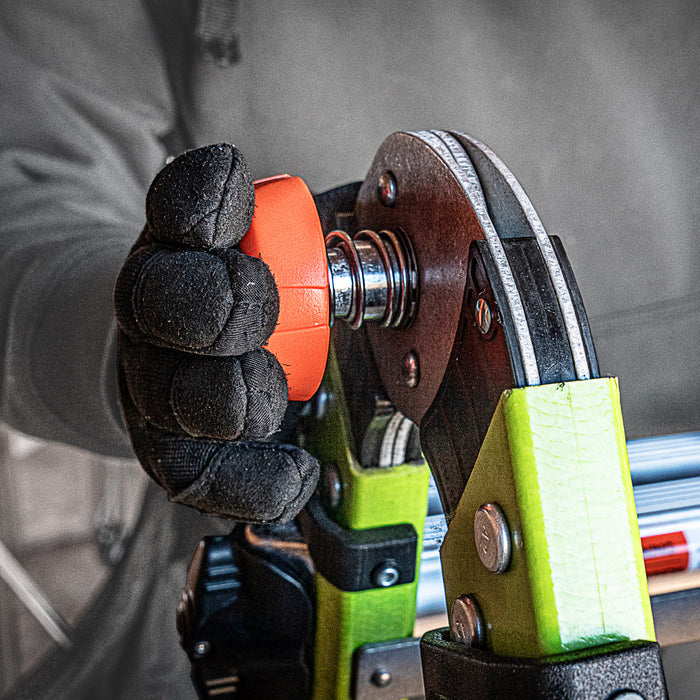

2. PATENTED RAPID LOCKS
Grip and twist the Rapid Lock, and then slide the rails of the ladder to the desired size. Twist the Rapid Lock once more to lock the ladder rails in place.

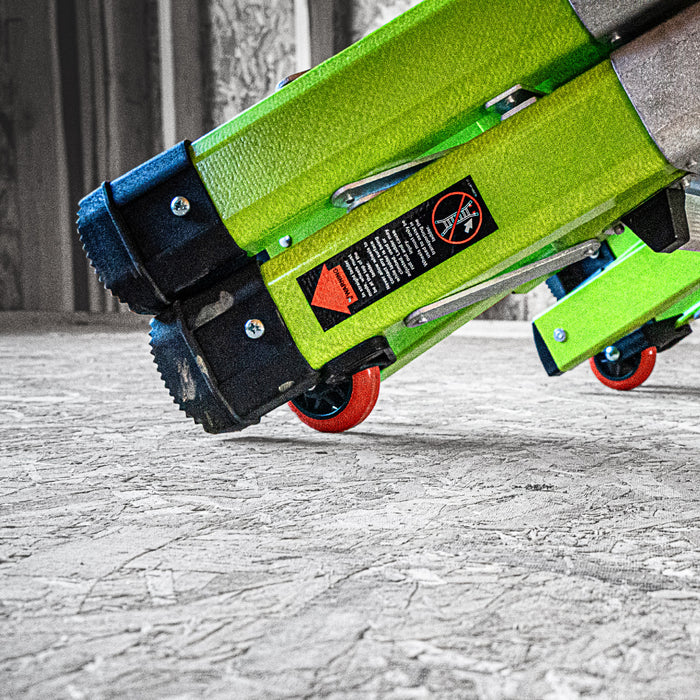

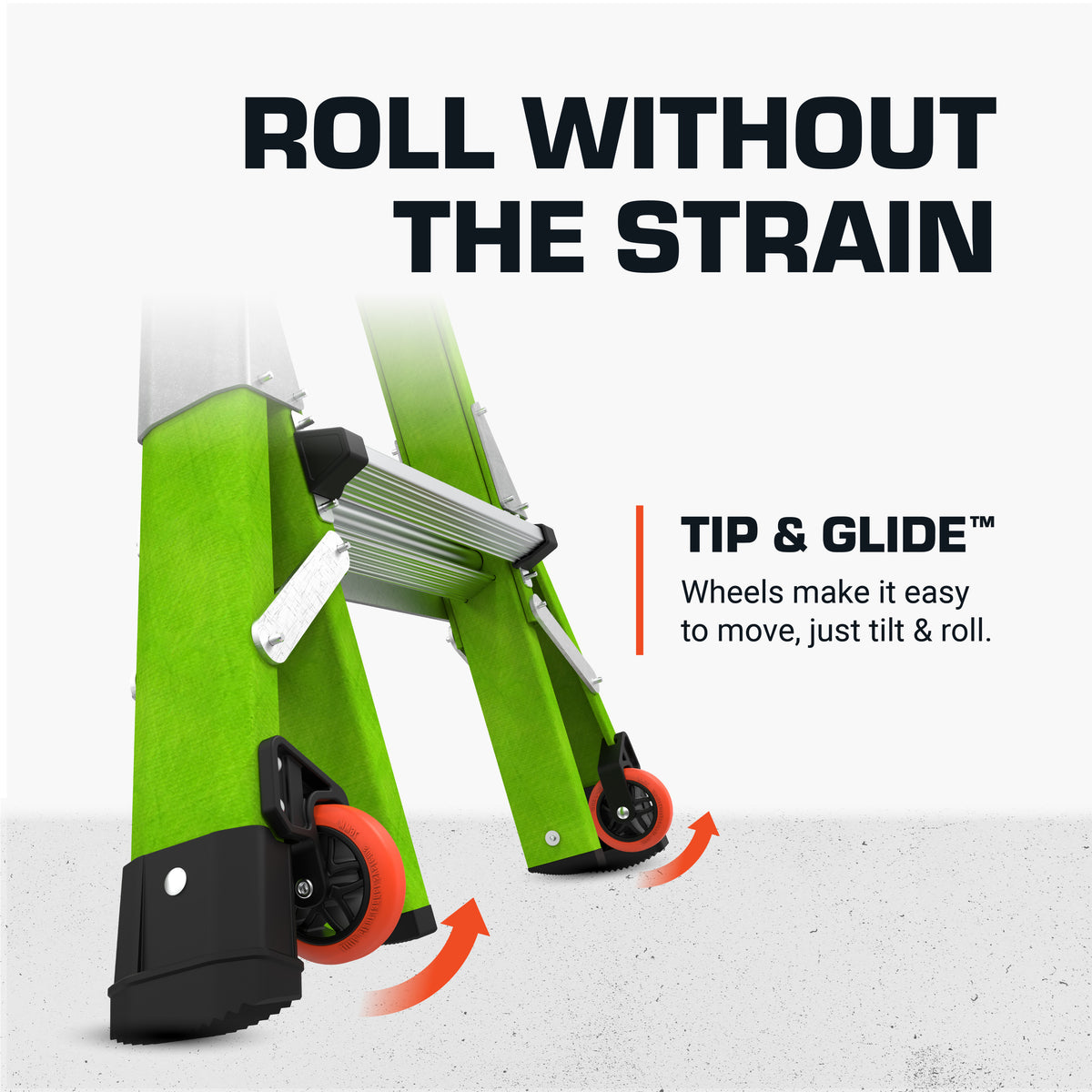

3. TIP & GLIDE WHEELS
The Dark Horse's integrated Tip & Glide wheels help you move the ladder easily from job to job.
10% LIGHTER
The Dark Horse 2.0 is 10% lighter than previous models, without sacrificing strength or stability. With this weight decrease, you will be able move faster and accomplish more.
NON-CONDUCTIVE FIBERGLASS
It's truly a ladder built for the trades. Made from lightweight, durable fiberglass, you can work safely around electricity.
| Model Number | 16117-001 |
| ANSI Duty Rating | Type IA - Extra Heavy Duty |
| Weight Capacity | 300 lbs. |
| Product Material | Fiberglass |
| Ladder Type | Telescoping - Articulated |
| Warranty | 1-Year |
| Product Weight | 37.5 lb |
| Country of Origin | China |
| Storage Depth | 9 in |
| Storage Width at Base | 2.17 ft |
| Feet | Standard non-marring (riveted) |
| Spreader System | Hinge Lock |
| 90° Position | Yes |
| Tip & Glide Wheels™ | Yes |
| V-Bar | No |
| Ratchet Levelers | No |
| Ground Cue | No |
| Air Deck Ports | No |
| Claw | No |
| Scaffolding Position | Yes |
| Stepladder Size | 7.5 ft |
| Stepladder Highest Standing Level | 4.83 ft |
| Stepladder Maximum Footprint | 5.33 ft |
| Stepladder Max. Reach | 11.33 ft |
| Extension Lock | Rapid Lock |
| Extension Min Reach | 8.92 ft |
| Extension Minimum Working Length | 8.92 ft |
| Extension Maximum Working Length | 14.92 ft |
| Extension Max Reach | 18.08 ft |
| Extension Total Length of Sections | 17.17 ft |
| Ship length | 4.67 ft |
| Ship Width | 2.42 ft |
| Ship Height | 10 in |
| Ship Weight | 43.2 lb |
This new multi-position ladder fills our needs and is about 10 lbs lighter that the older Little Giant 1AA fiberglass multi-position ladders so it is easier to tote around for service calls.
Thank you for your 5-star review, Jay D. We're delighted to hear that our multi-position ladder has proven to be an excellent fit for your needs. Your positive feedback on its lightweight design and portability reinforces our commitment to providing top-notch, versatile products that prioritize both convenience and functionality. We're thrilled that the ladder's reduced weight has made it easier for you to transport during service calls, enhancing your overall experience. Enjoy the ease of use and adaptability it offers as you tackle various tasks with confidence for years to come.
I feel very grateful to have found Little Giant who provides a true quality product (the Darkhorse 2.0 17' Ladder) at an affordable cost with safety for their customers being their top priority. We strive to support our technicians in the field so they can provide the best level of service to our customers and Little Giant has helped provide an important tool to help them in their endeavors. Thank you Little Giant for stepping up when we needed your help. You are a class act.
Size refers to the ANSI definition of length. ANSI states that the size is defined by the combined length of all rail sections, with a tolerance of +/-3” on each section. Note, this does not take into account any overlap between sliding sections like those on an extension or multi-purpose ladder. This can cause a disparity in the size of the ladder versus the actual height. To determine which ladder you need, Little Giant recommends you reference maximum reach height instead of size.
The terminology for ladder duty ratings, grades, and types can sometimes be confusing. The ladder's duty rating is the maximum safe load capacity of that ladder according to ANSI standards. There are 3 types of ratings that Little Giant offers:
Type I - Made to handle everyday projects. Has a load capacity of 250 lbs.
Type IA- Designed with durability and regular use in mind. Has a load capacity of 300 lbs.
Type IAA- Built for professional performance and rugged use. Has a load capacity of 375 lbs.
Ladder specifications can be confusing due to safety regulation requirements. According to ANSI (American National Standards Institute), the ladder size is defined as the total length of each section and does not account for overlap on extension ladders. As a result, the overlapping sections reduce the total length of the ladder. When purchasing any ladder customers should pay particular attention to the maximum reach to ensure the correct product for the job.
Little Giant Ladders offers replacement parts for products manufactured by Little Giant Ladders only. Please contact Customer Service at 1 (800) 453-1192 or shop online at https://www.littlegiantladders.com/pages/ladder-parts.
When ordering replacement parts, you will need to provide the Little Giant Ladder Model Number and Mark Number or a description of the part you need.
