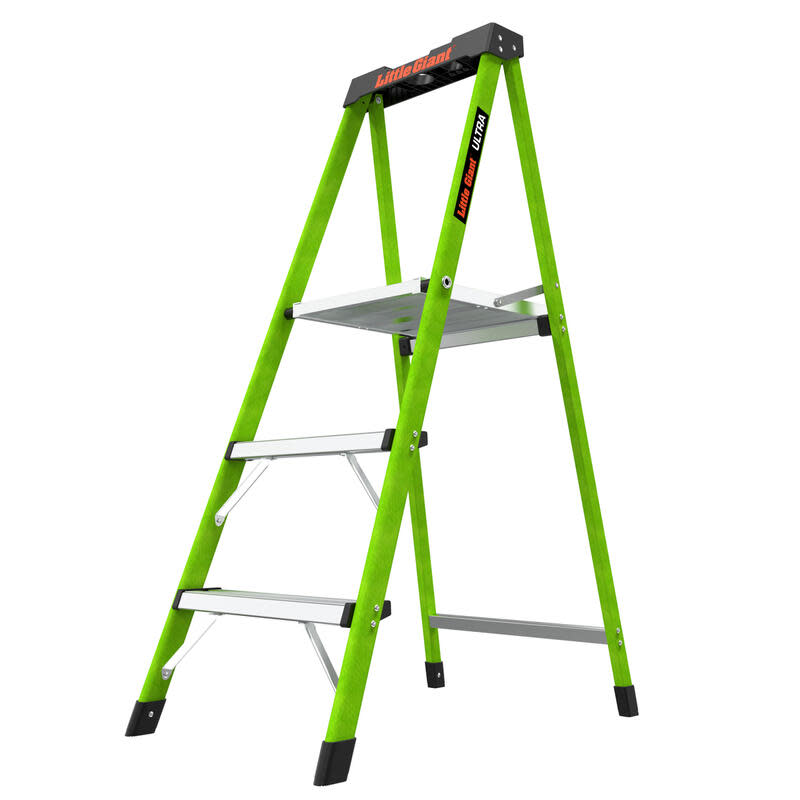

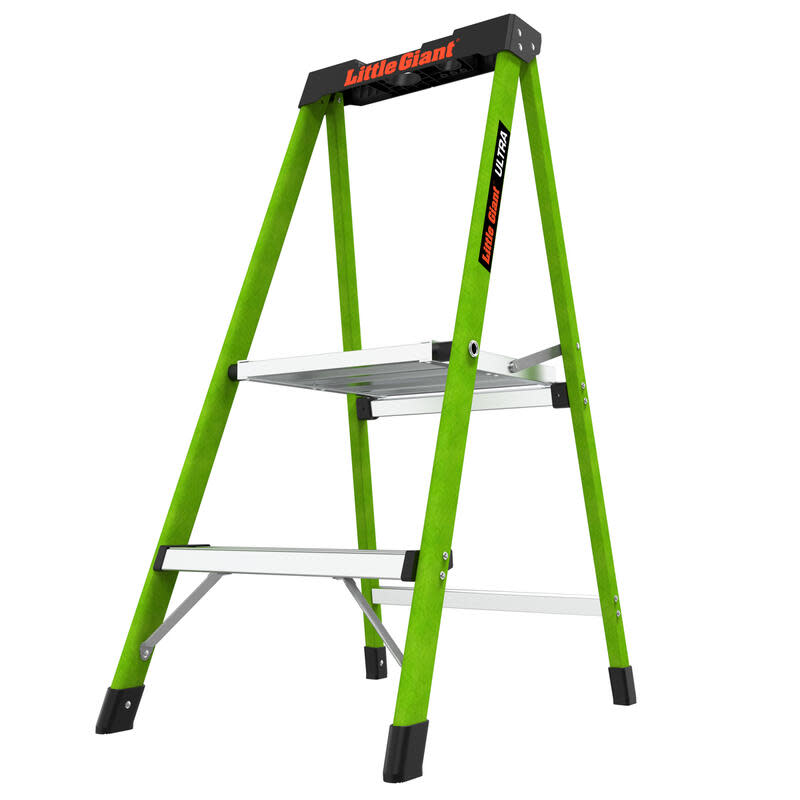

The Ultra™ from Little Giant Ladder Systems® is a sturdy, easy-to-use stepladder that is built to last. This lightweight ladder was engineered with a slim storage profile, while still supporting an impressive weight capacity. It’s a “get stuff done” ladder built for pros.
Extra-wide 3” steps with treads prevent slipping and foot fatigue, and lead to a large standing platform. At 169 square inches, the comfortable standing platform creates a sturdy workspace that fully supports the feet. Work in comfort for extended periods.
The Ultra’s innovative top cap features accessory slots for existing and future Little Giant accessories (like the Loot Box™ or Strap Holder™), a magnetic tray, a gallon and quart friction-lock system, port holes, slots and more to keep your materials within reach while working.
The Ultra is made with strong, lightweight and non-conductive fiberglass. Little Giant’s iconic Hi-Viz Green fiberglass promotes safety for both the climber and passersby, as its vibrant color decreases the likelihood of accidental ladder bumping. And with the Ultra’s improved fully enclosed rail design, less strain is put on the fiberglass, making it a more long-lasting and durable ladder. Duty Rating The Ultra™ from Little Giant Ladder Systems® meets or exceeds all OSHA and ANSI standards and is rated Type IA to hold 300 lbs.
| Model Number | 11862-002 |
| ANSI Duty Rating | Type IA - Extra Heavy Duty |
| Weight Capacity | 300 lbs. |
| Product Material | Fiberglass |
| Warranty | 1-Year |
| Product Weight | 9.5 lb |
| Country of Origin | China |
| Storage Depth | 3.5 in |
| Storage Width at Base | 1.54 ft |
| Feet | Standard non-marring (riveted) |
| Spreader System | Platform |
| 90° Position | No |
| Tip & Glide Wheels™ | No |
| V-Bar | No |
| Ratchet Levelers | No |
| Ground Cue | No |
| Air Deck Ports | No |
| Claw | No |
| Scaffolding Position | No |
| Stepladder Size | 19 in |
| Stepladder Highest Standing Level | 1.58 ft |
| Stepladder Maximum Footprint | 2 ft |
| Stepladder Max. Reach | 8.08 ft |
| Ship length | 83.33 ft |
| Ship Width | 83.33 ft |
| Ship Height | 83.33 ft |
| Ship Weight | 9.5 lb |
Size refers to the ANSI definition of length. ANSI states that the size is defined by the combined length of all rail sections, with a tolerance of +/-3” on each section. Note, this does not take into account any overlap between sliding sections like those on an extension or multi-purpose ladder. This can cause a disparity in the size of the ladder versus the actual height. To determine which ladder you need, Little Giant recommends you reference maximum reach height instead of size.
The terminology for ladder duty ratings, grades, and types can sometimes be confusing. The ladder's duty rating is the maximum safe load capacity of that ladder according to ANSI standards. There are 3 types of ratings that Little Giant offers:
Type I - Made to handle everyday projects. Has a load capacity of 250 lbs.
Type IA- Designed with durability and regular use in mind. Has a load capacity of 300 lbs.
Type IAA- Built for professional performance and rugged use. Has a load capacity of 375 lbs.
Ladder specifications can be confusing due to safety regulation requirements. According to ANSI (American National Standards Institute), the ladder size is defined as the total length of each section and does not account for overlap on extension ladders. As a result, the overlapping sections reduce the total length of the ladder. When purchasing any ladder customers should pay particular attention to the maximum reach to ensure the correct product for the job.
Little Giant Ladders offers replacement parts for products manufactured by Little Giant Ladders only. Please contact Customer Service at 1 (800) 453-1192 or shop online at https://www.littlegiantladders.com/pages/ladder-parts.
When ordering replacement parts, you will need to provide the Little Giant Ladder Model Number and Mark Number or a description of the part you need.
